How to add the Dial-in Tab in Windows 7 Remote Sever Administration Tools (RSAT)

Like This Blog 0 Rick Trader
Added by November 5, 2014

After downloading and installing the Remote Sever Administration Tools (RSAT) in Windows 7 the Dial-in tab is missing in both the Active Directory Administrative Center (ADAC) (See figure 1 ).and Active Directory Users and Computers (ADUC) (See figure 2 ).

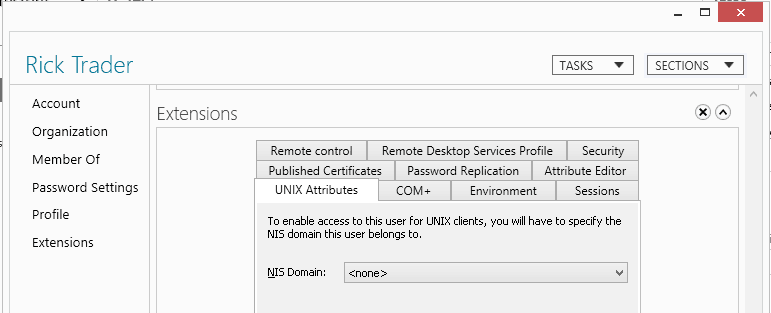

001-How-to-add-the-Dial-in-Tab-in-Windows 7-RSAT

Figure 1

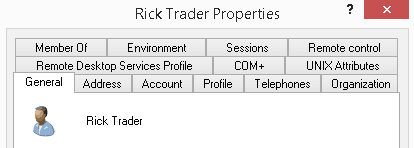

 002-How-to-add-the-Dial-in-Tab-in-Windows 7-RSAT

Figure 2

To add the Dial-in properties tab, copy the following files from a Windows 2008 R2 x64 server to the Windows 7 Desktop.

C:\Windows\System32\mprsnap.dll

003-How-to-add-the-Dial-in-Tab-in-Windows 7-RSAT

C:\Windows\System32\rasuser.dll

004-How-to-add-the-Dial-in-Tab-in-Windows 7-RSAT

C:\Windows\System\rtrfiltr.dll

005-How-to-add-the-Dial-in-Tab-in-Windows 7-RSAT

C:\Windows\System32\en-US\mprsnap.dll.mui

006-How-to-add-the-Dial-in-Tab-in-Windows 7-RSAT

C:\Windows\System32\en-US\rasuser.dll.mui

007-How-to-add-the-Dial-in-Tab-in-Windows 7-RSAT

C:\Windows\System32\en-US\rtrfiltr.dll.mui

008-How-to-add-the-Dial-in-Tab-in-Windows 7-RSAT

Once you have copied the files to your desktop, copy the files to the appropriate C:\Windows\System32 or C:\Windows\System32\en-US folder.

Open the Command Prompt with Administrative rights type the following command (See figure 3).

regsvr32.exe rasuser.dll

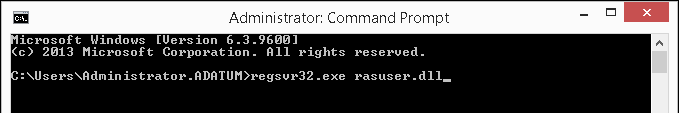

009-How-to-add-the-Dial-in-Tab-in-Windows 7-RSAT

Figure 3

Ensure a dialog box opens the rasuser.dll was successfully registered (See figure 4).

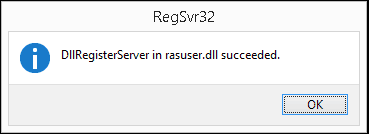

011-How-to-add-the-Dial-in-Tab-in-Windows 7-RSAT

Figure 4

If you have either ADAC or ADUC open you will need to close and reopen the tool.  The Dial in Tab is now available in the user property in both the Active Directory Administrative Center (See figure 5) and the Active Directory Users and Computers (See figure 6).

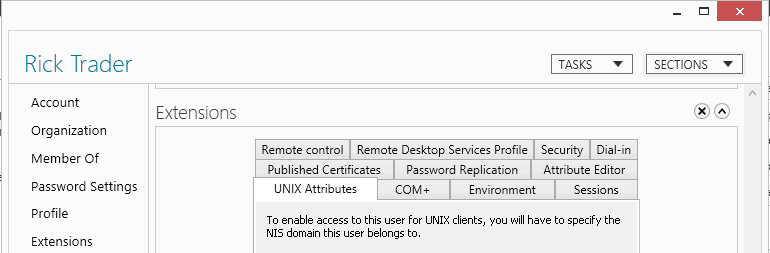

012-How-to-add-the-Dial-in-Tab-in-Windows 7-RSAT

Figure 5

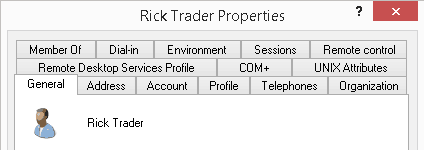

 013-How-to-add-the-Dial-in-Tab-in-Windows 7-RSAT

Figure 6

Until next, time Ride Safe!

Rick Trader
Windows Server Instructor – Interface Technical Training
Phoenix, AZ
