  • How to configure Production or Standard Checkpoints in Windows Server 2016 Hyper-V

    Standard Checkpoint (formerly known as Snapshots) capture the current state, data, and hardware configuration of a running virtual machine.  When you revert or apply a previous created checkpoint the VM are returned to the exact state it was in when the Standard checkpoint was created.  Including hardware setting contained in the VM configuration file.  Standard checkpoints are intended for test and production environments.

    Production Checkpoints (New Server 2016) are a point in time snaphot of the VM.  When restored they are supported in a production environment for production workloads.  This is achieved using VSS backup technologies within the guest VM.

    How to configure Production or Standard Checkpoints:

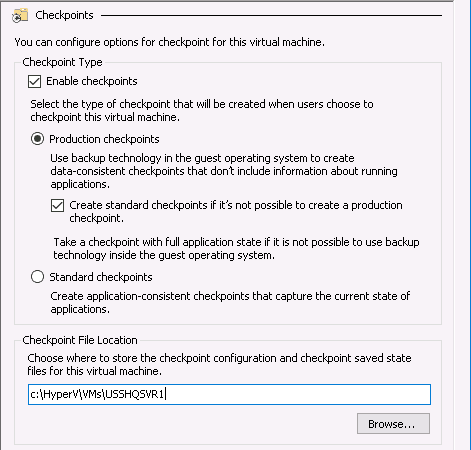

    In Hyper-V Manager, right click on the appropriate VM and click Settings.

    Under Management, select Checkpoints.

    In the right hand pane select the desired checkpoint.


    Note:  If you choose production you can also choose whether or not to create a standard checkpoint in the event a production checkpoint can’t be created.

    You may also like:  How to Setup and Use Dynamic Groups TTL Windows Server 2016 and Server 2012R2

    If you want to store your checkpoint in a different place than the default location, choose where to store the checkpoint and click Apply.

    So once you have decided which type of checkpoint your organization wants to use.  It is simple to configure.  Remember each VM is configured individually.

    Until Next Time, RIDE SAFE!

    Rick Trader
    Windows Server Instructor – Interface Technical Training
    Phoenix, AZ
