  • Using PowerShell to remove the MiniShell or Full Graphical Shell to convert Windows Server 2012 R2 Datacenter to a Core Edition

    You have finished configuring your Windows Server 2012 R2 Datacenter computer with the either the MiniShell or the Full Graphical Interface and now you want to convert the computer to a Core edition. In this blog I will show you the steps to remove the graphical interfaces using Server Manager.

    Converting Windows Server 2012 R2 to Core edition

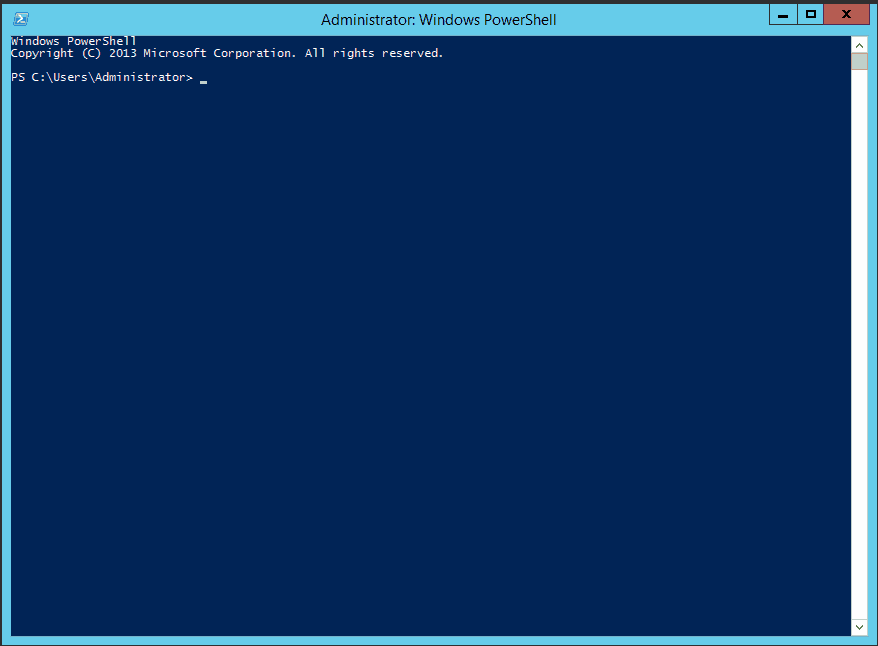

    1. Launch PowerShell001-Using-PowerShell-to-remove-the-MiniShell-in-Windows-Server-2012

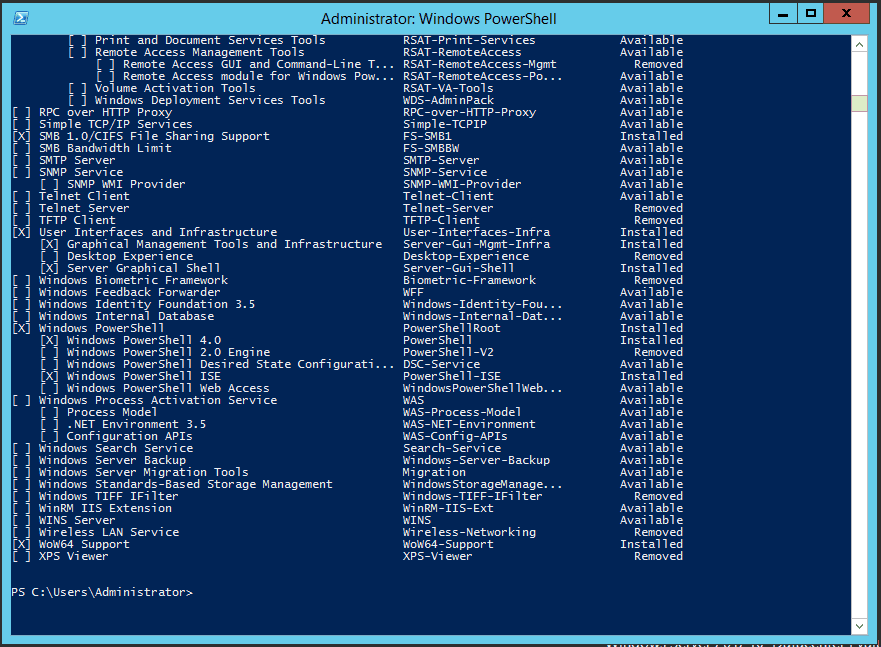

    1. To determine syntax of features you want to uninstall, type Get-Windowsfeature.002-Get-Windowsfeature-Using-PowerShell-to-remove-the-MiniShell-in-Windows-Server-2012

    Note:  To convert completely back to a Core installation both the Server Graphical Shell (Server-Gui-Shell) and the Graphical Management Tools and Infrastructure (Server-Gui-Mgmt-Infra) have to be unistalled.

    Note:  To convert to the MiniShell only the Server Graphical Shell (Server-Gui-Shell) has to be uninstalled.

    Note:  I will be converting completely back to a Core Installation.

    1. Type Uninstall-Windowsfeature Server-Gui-Mgmt-Infra, Server-Gui-Mgmt-Infra –restart.

    Note:  If you desire to remove the Binaries from the C:\Windows\WINSxS folder add the –remove switch to the above CMDLET.

    003-remove-switch-Using-PowerShell-to-remove-the-MiniShell-in-Windows-Server-2012

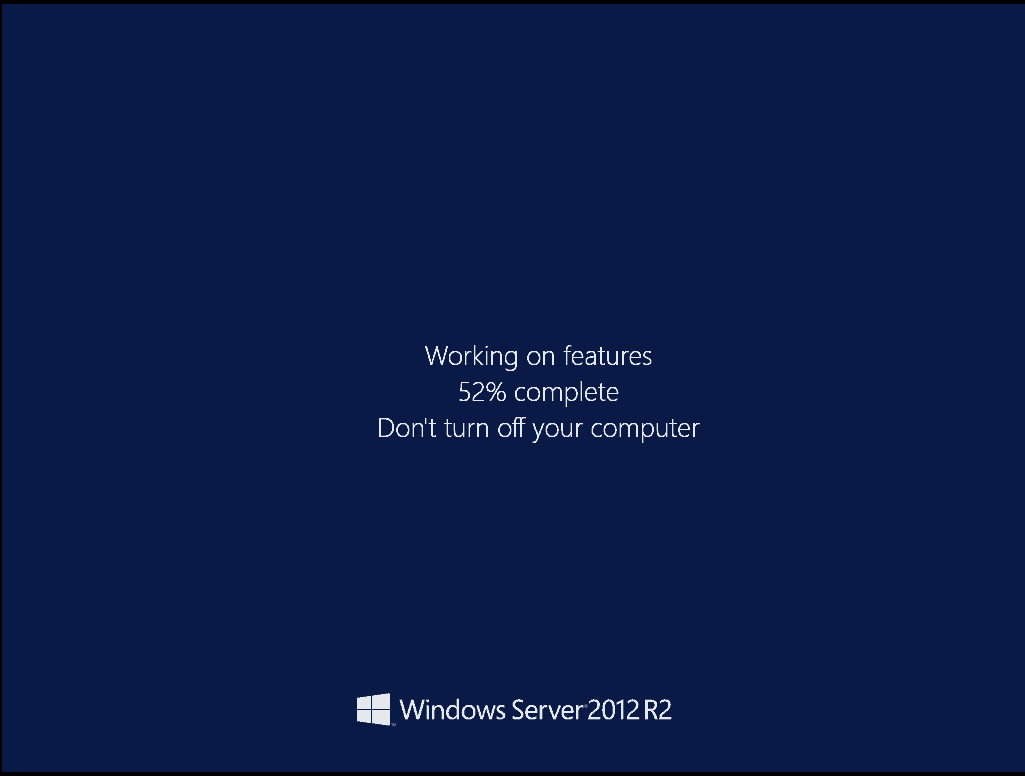

    004-Using-PowerShell-to-remove-the-MiniShell-in-Windows-Server-2012

    1. After the computer restarts, logon and verify the graphical interfaces have been removed.
    You may also like:  Changing the Network Location in Windows 8 and 8.1

    Check back later for more blogs relating to:

    Until next time – Ride Safe!

    Rick Trader
    Windows Server Instructor – Interface Technical Training
    Phoenix, AZ
