Video: How to set up a Content Type Hub in SharePoint 2010

Home > Blogs > SharePoint > Video: How to set up a Content Type Hub in SharePoint 2010

Video: How to set up a Content Type Hub in SharePoint 2010

Like This Blog 0 Spike Xavier
Added by Spike Xavier August 29, 2012

In this post, we’re going to be setting up a Content Type Hub in SharePoint 2010. We’re going to do this in seven steps.

1. Create a Site Collection
2. Activate the features necessary to create a Content Type Hub,
3. Create a new Managed Metadata Service Application
4. Connect the Service Application to the Content Type Hub
5. Verify the settings
6. Create a Content Type in the Hub
7. Test the Content Type in a different Site Collection than the Content Type Hub.

In order to successfully accomplish these tasks, there are a couple prerequisite knowledge you will need to know. As found in my class SP360: SharePoint 2010 Foundation & Server Core Training

  • First, you will need to be in the Farm Administrators group because you will need access to Central Administration in order to set up a new Managed Metadata Service Application and configure its settings.
  • Second, you will need to be in the Site Collection Administrators group on the Site Collection that you will be turning into a Content Type Hub and you will need access to the Site Collection Features.
  • Third, we’re assuming you have a thorough understanding of Content Types in SharePoint:
    • What they are
    • How to create them
    • The advantages they offer
    • The limitations that existed in previous versions of SharePoint so that you can appreciate the advantages that the Content Type Hub offers.
  • Finally, a good understanding of Site Collections:
    • What they are
    • How to create Site Collections
    • How to administer them.

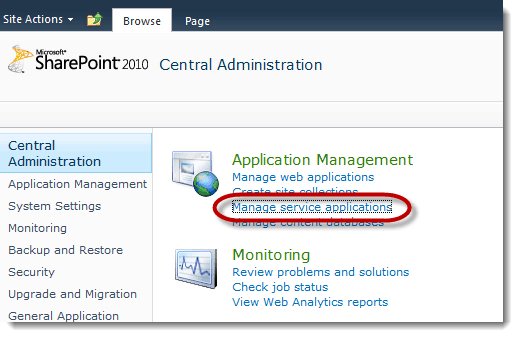

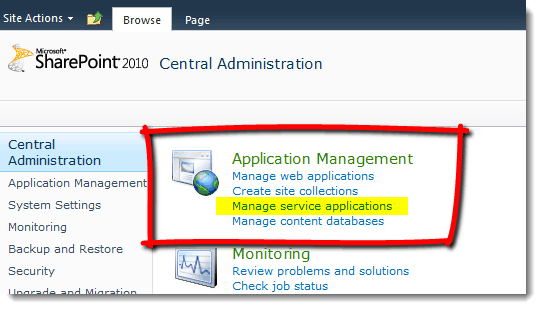

Inside Central Administration Application Management section of the home page, there is a link to Manage Service Applications.

Central-Administration-Manage-Service-Applications How to set up a Content Type Hub in SharePoint 2010

Clicking the Manage Service Applications link will take you to Service Applications page where you can see all the Service Applications and their connections or proxies that are deployed to this Farm.

Service-Applications How to set up a Content Type Hub in SharePoint 2010

Each Service Application has two layers. 1) The application itself, which provides a graphical user interface layer for configuration and management,

Service-Applications How to set up a Content Type Hub in SharePoint 2010

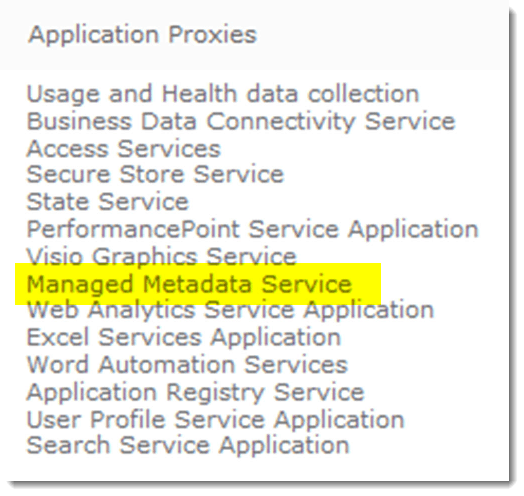

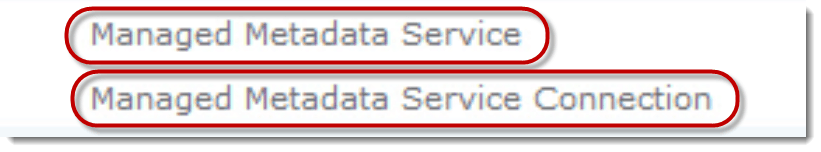

2) A second layer which is a proxy, or connection layer.

Service-Applications-proxy How to set up a Content Type Hub in SharePoint 2010

Among other things, the proxy layer allows for Collections or Groups of Service Applications to be put together and given a name. This allows you to be more specific in the functionality you want to provide to the individual web applications deployed throughout the enterprise.

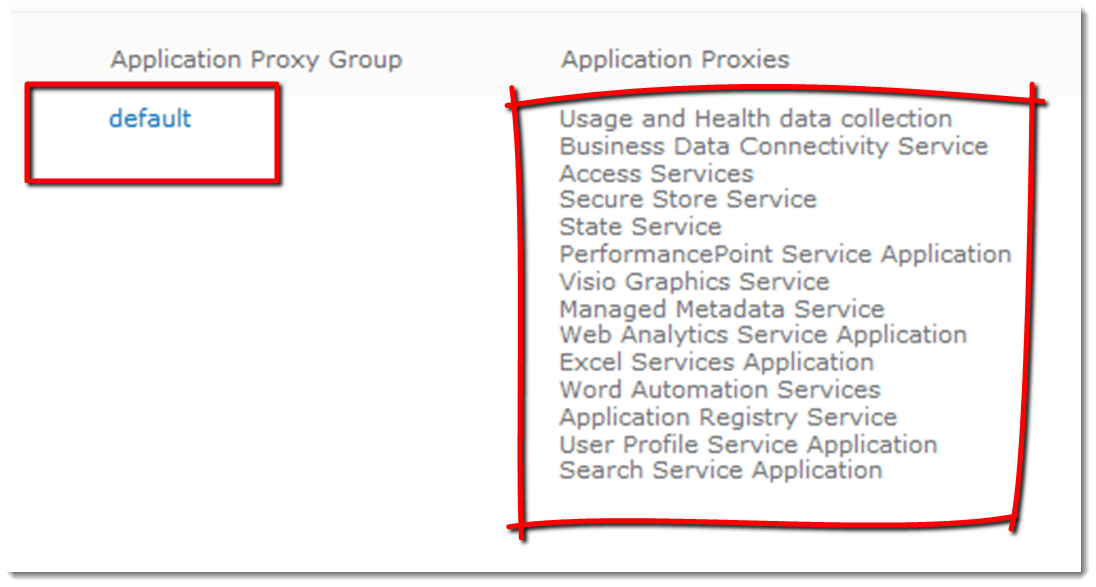

If you’ve done an out-of-the-box installation of SharePoint 2010, you will receive one group which will be given the name of “default”.

Service-Applications-proxy-default How to set up a Content Type Hub in SharePoint 2010

The Default group will contain all of the Service Applications whose checkbox was checked when the Farm was configured.

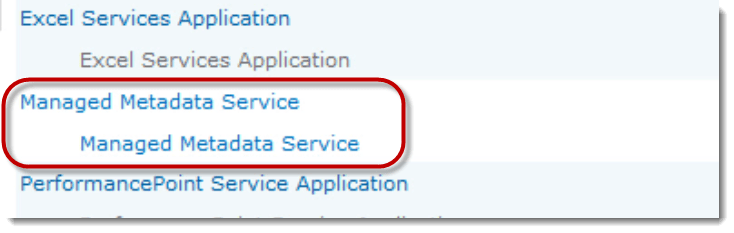

Here you can see an existing Managed Metadata Service application.

Managed-Metadata-Service-application How to set up a Content Type Hub in SharePoint 2010

You can use an existing Service Application, but each one can only consume one Content Type Hub. In this post, we will create a new Service Application, connect it to our Hub, and add it to the Default Service Application group.

Here’s how this works.

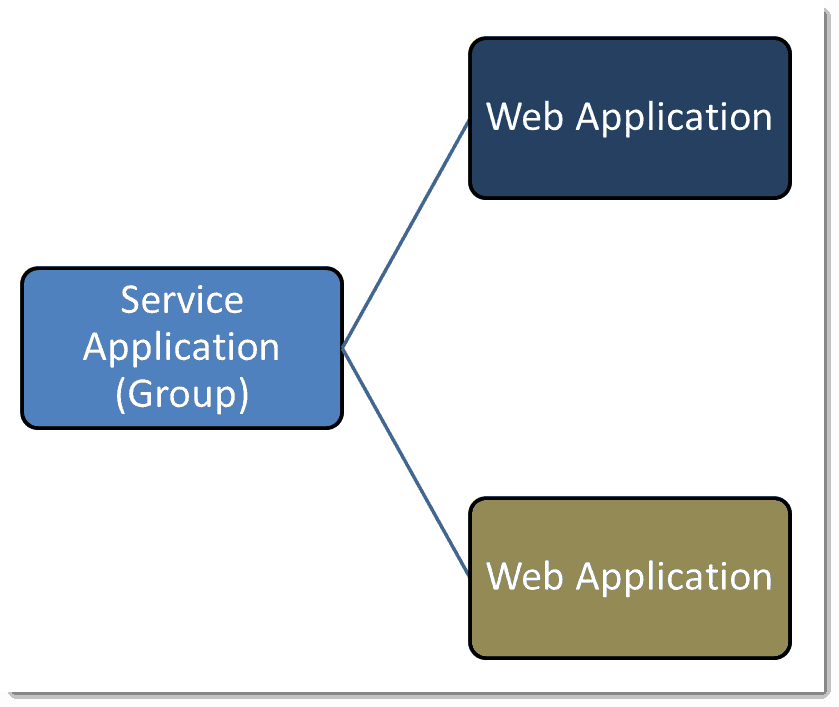

Service-Application-Group-How to set up a Content Type Hub in SharePoint 2010

Your Service Application Groups are ready and waiting to be connected to your Web Applications. Each Web Application can only consume one Service Application Group. However, you can configure a custom group specifically for that Web Application and choose from the existing Service Applications at the time of configuration.

In this post, we’ll just use the default group.

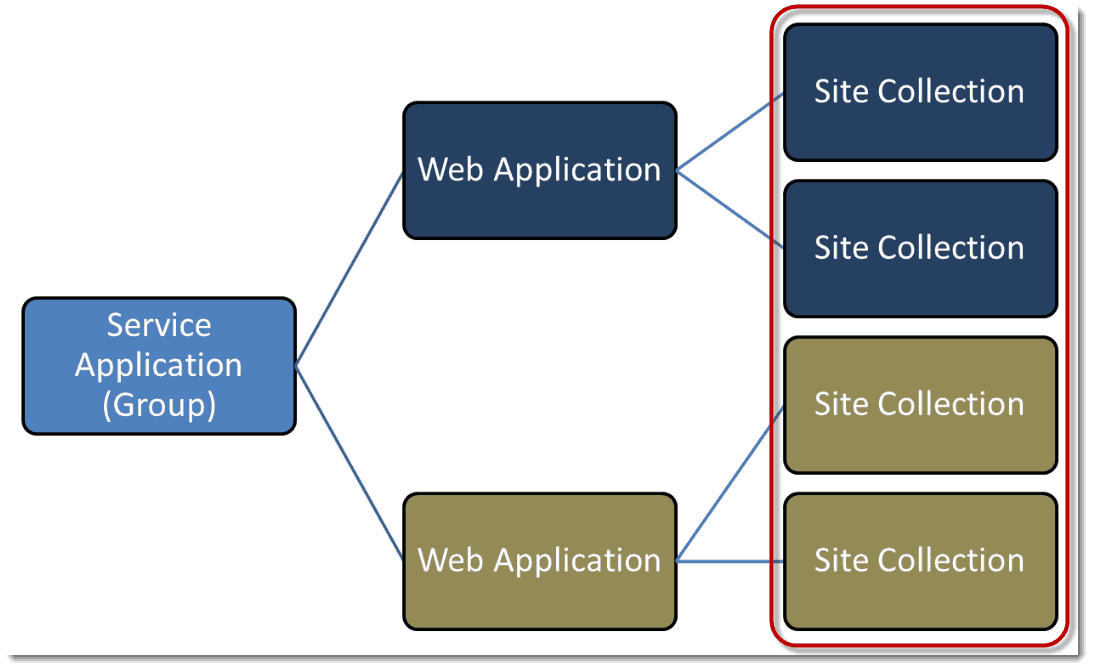

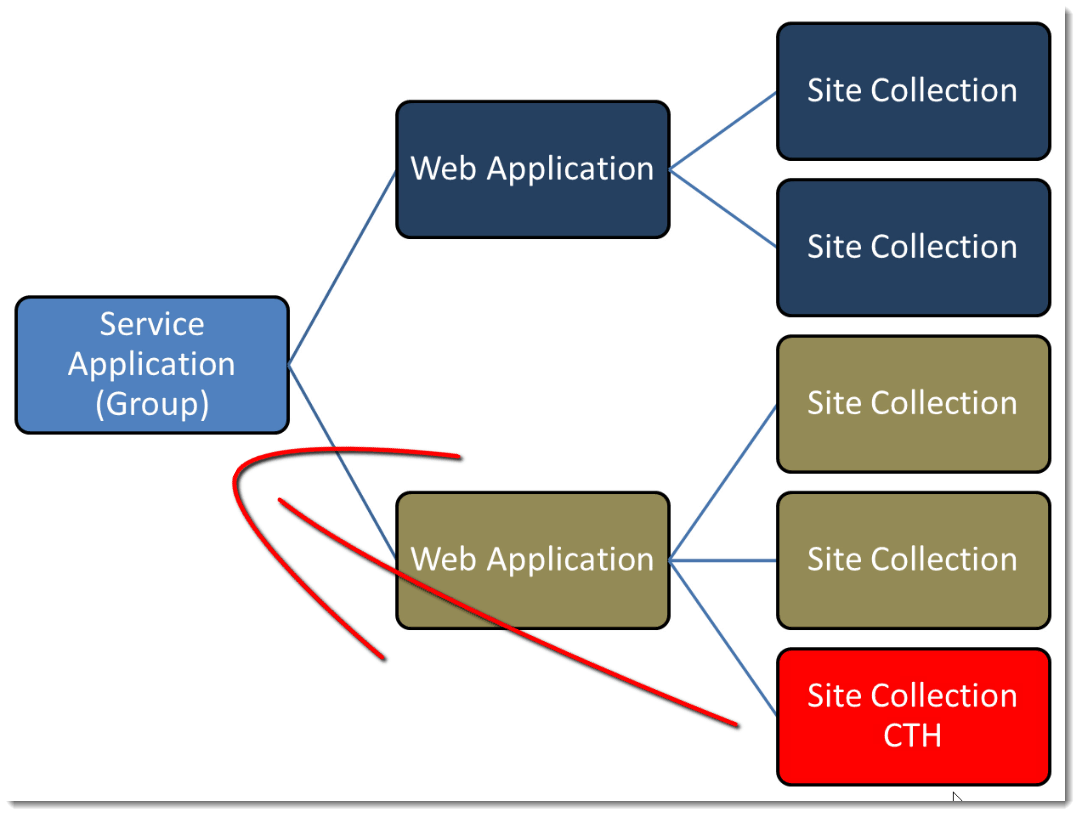

Site collections are attached to the Web Applications, and therefore the functionality provided by the Service Application group flows down to the Site Collections and its sites, lists and libraries, etc…

Service-Application-Group-site-collections-How to set up a Content Type Hub in SharePoint 2010

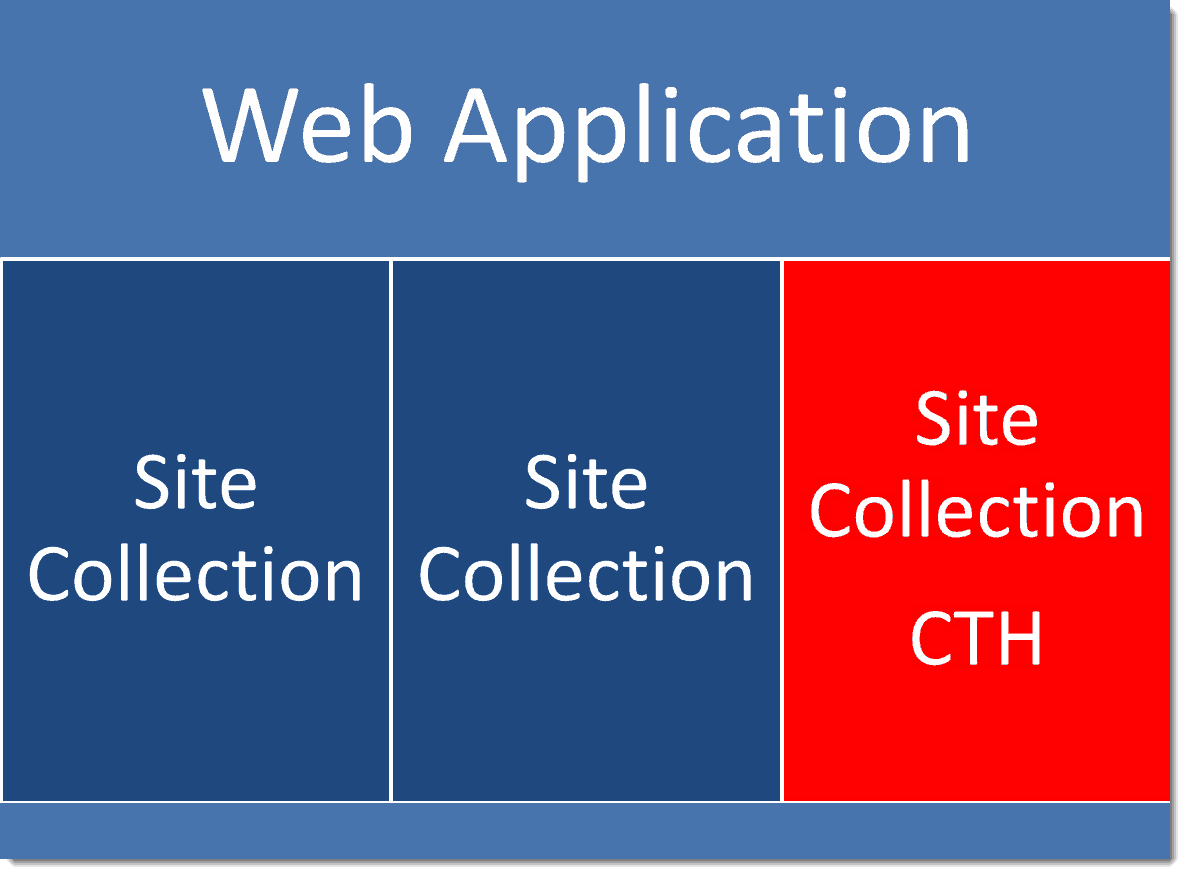

Content Types are scoped at the Site Level. However, it’s normally a best-practice to create them in the top level site of a Site Collection so they are available to be used by every list and library in the Site Collection by designating one of the Site Collections as a Content Type Hub, and then connecting that Content Type Hub to a Managed Metadata Service Application that is in the Service Application Group.

web-Application-Group-site-collections-How to set up a Content Type Hub in SharePoint 2010

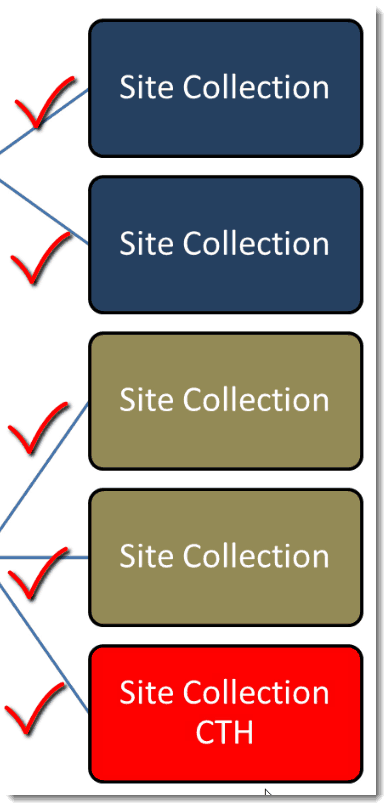

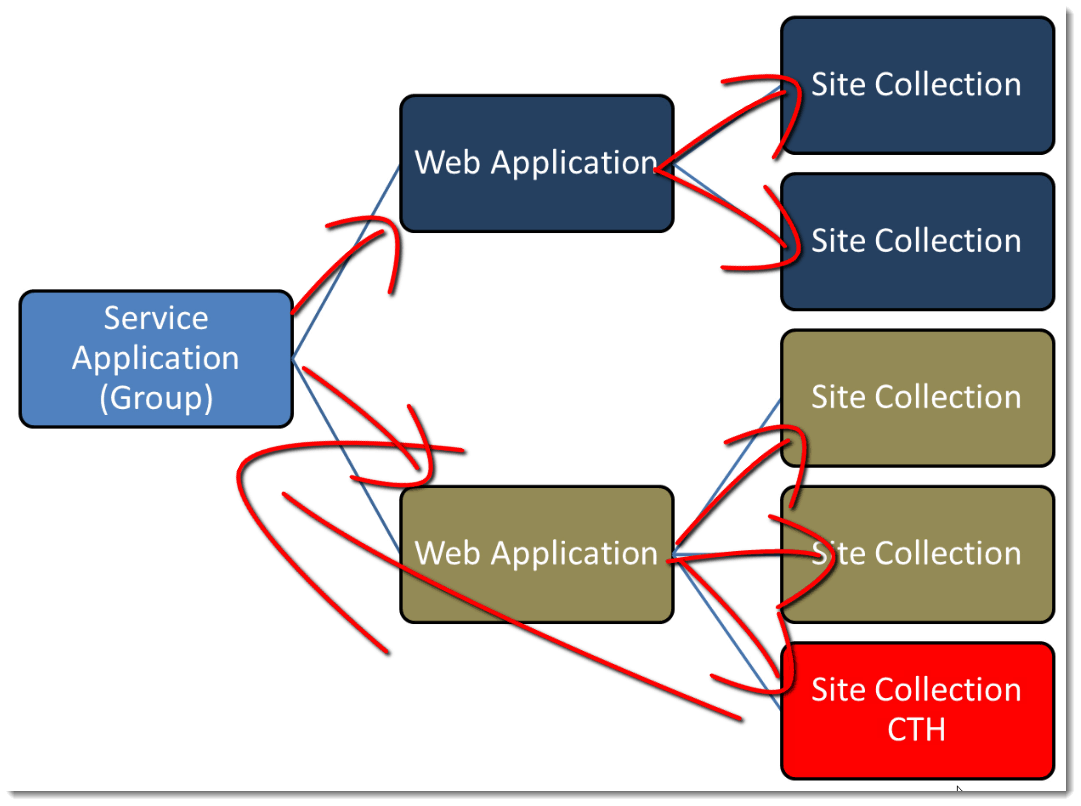

All of the Site Collections attached to any of the Web Applications that are using the Service Application Group will have access to the Content Types created in the Hub.

web-Application-Group-site-collections-How to set up a Content Type Hub in SharePoint 2010

The only real caveat is, if you have a Content Type which relies on a feature that is activated in the Site Collection or site that it is created in, you need to make sure that those features are activated on a site that is using that Content Type.

Content type diagram How to set up a Content Type Hub SharePoint 2010

Let’s see how to set this up.

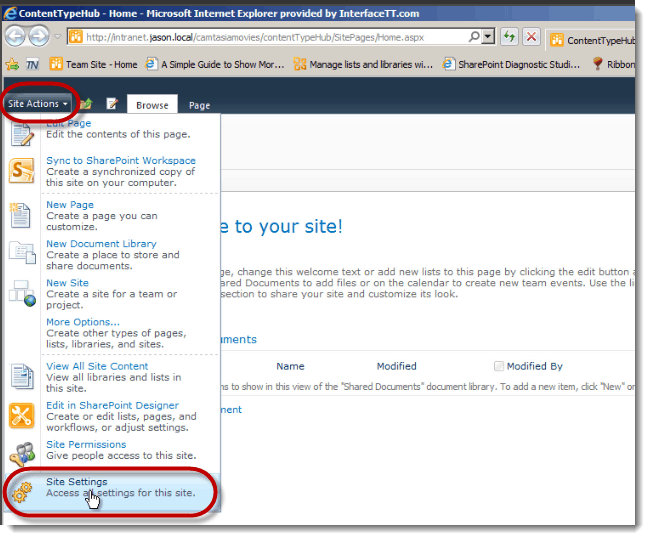

First, I’ve created a site collection that I’m going to use for my Content Type Hub. To do this, go to Site Actions then Site Settings.

Site Settings How to set up a Content Type Hub SharePoint 2010

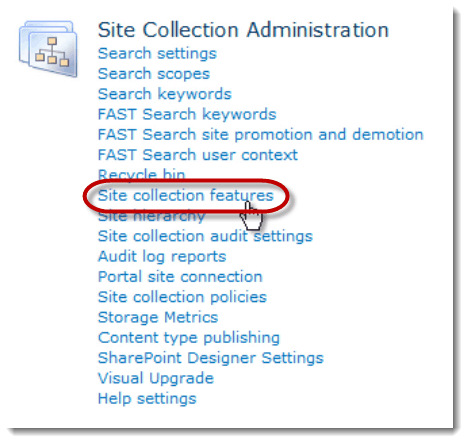

Choose Site Collection Features.

Site collection features How to set up a Content Type Hub SharePoint 2010

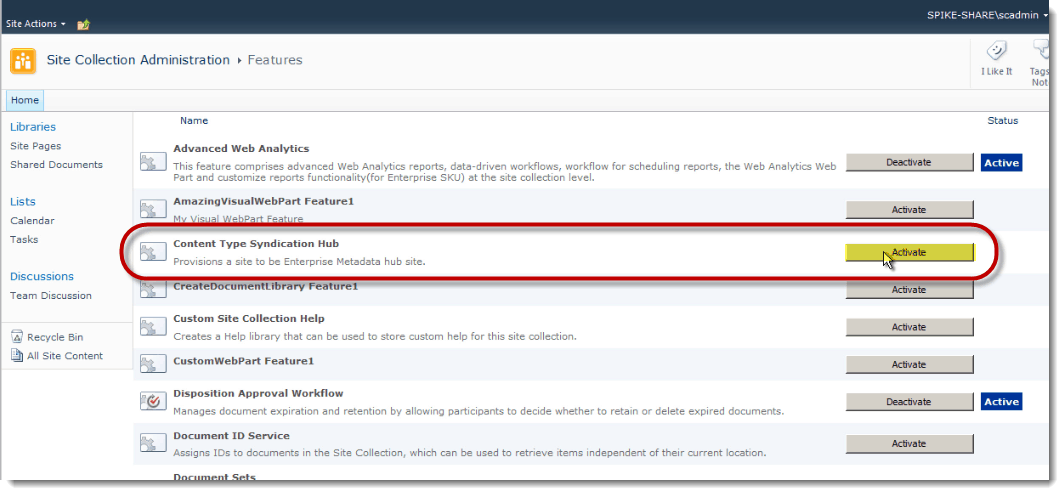

Then activate the Site Collection feature Content Type Syndication Hub.

activate Site collection features How to setup a Content Type Hub SharePoint 2010

This turns this Site Collection into a Content Type Hub.

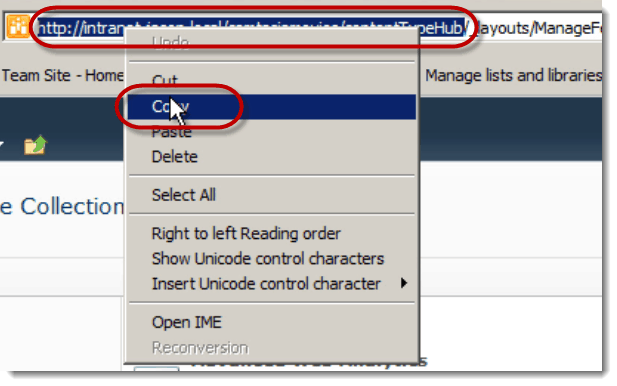

Next, go up to the URL and copy the root path to the top level site of this Site Collection.

copy root path How to setup a Content Type Hub SharePoint 2010

We will use this root path later when configuring the Managed Metadata Service Application.

Next, go back to Central Administration and click Manage Service Applications.

Manage Service Applications How to set up a Content Type Hub SharePoint 2010

Next we’ll create a New Managed Metadata Service Application.

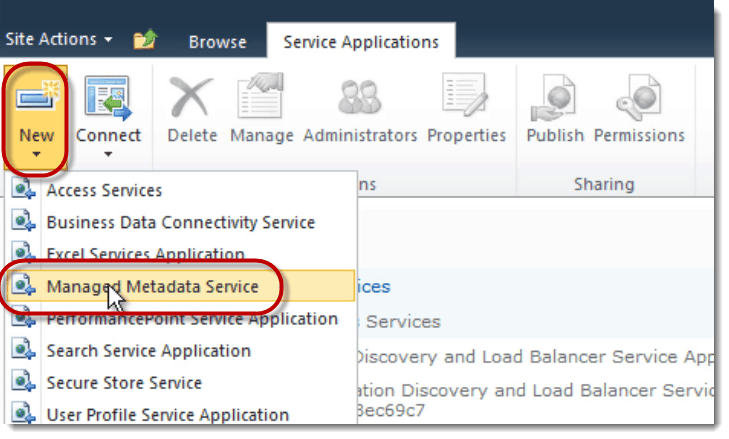

To do this, click New, and then Managed Metadata Service.

new Manage Service Applications How to setup a Content Type Hub SharePoint 2010

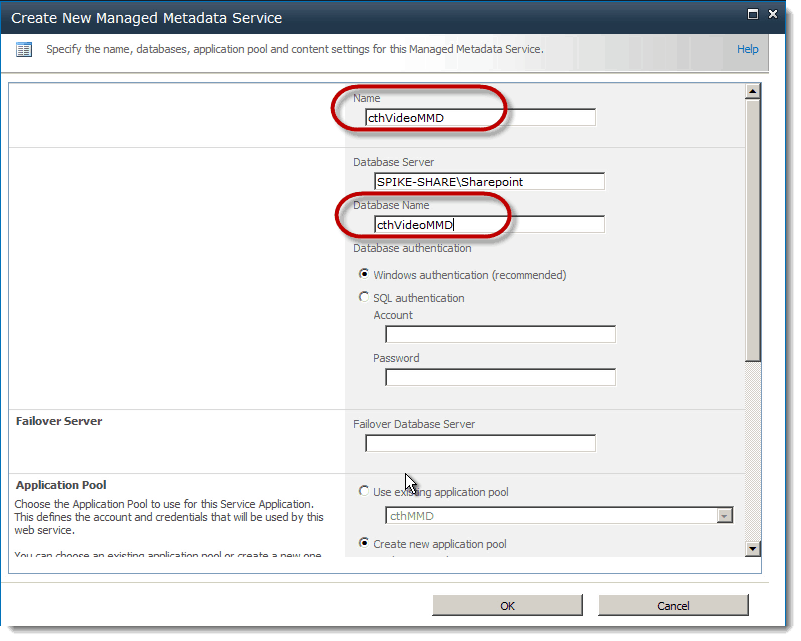

Fill out the information requested in the modal window. We’ll use “cthVideoMND” for the Name and the Database Name. This way it’s easy for us to identify which database goes with which particular Service Application.

modal window databse name How to set up a Content Type Hub SharePoint 2010

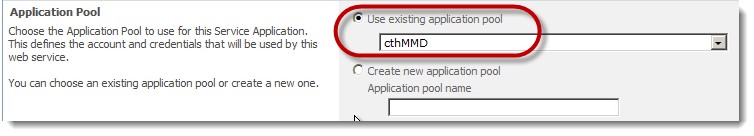

We’ll choose to use an existing Application Pool.

application pool How to set up a Content Type Hub SharePoint 2010

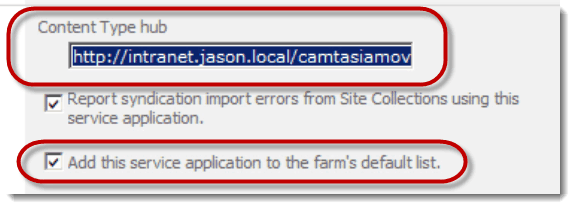

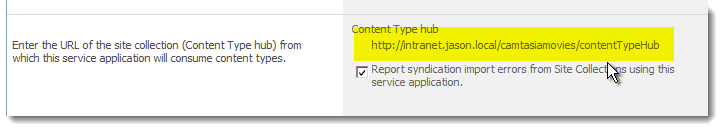

Most importantly, we can now paste in the root path to the top level site of the Site Collection that we activated the Content Type Syndication Hub feature on earlier.

copy root path How to set up a Content Type Hub SharePoint 2010

Notice that the checkbox is checked that says, “Add this service application to the farm’s default list.” Because this is checked, we don’t need to do any further configuration. We’ll validate the settings, but won’t have to do anything else. It’s all hooked up.

This Managed Metadata Service Application is going to consume its Content Types from the Content Type Hub created earlier.

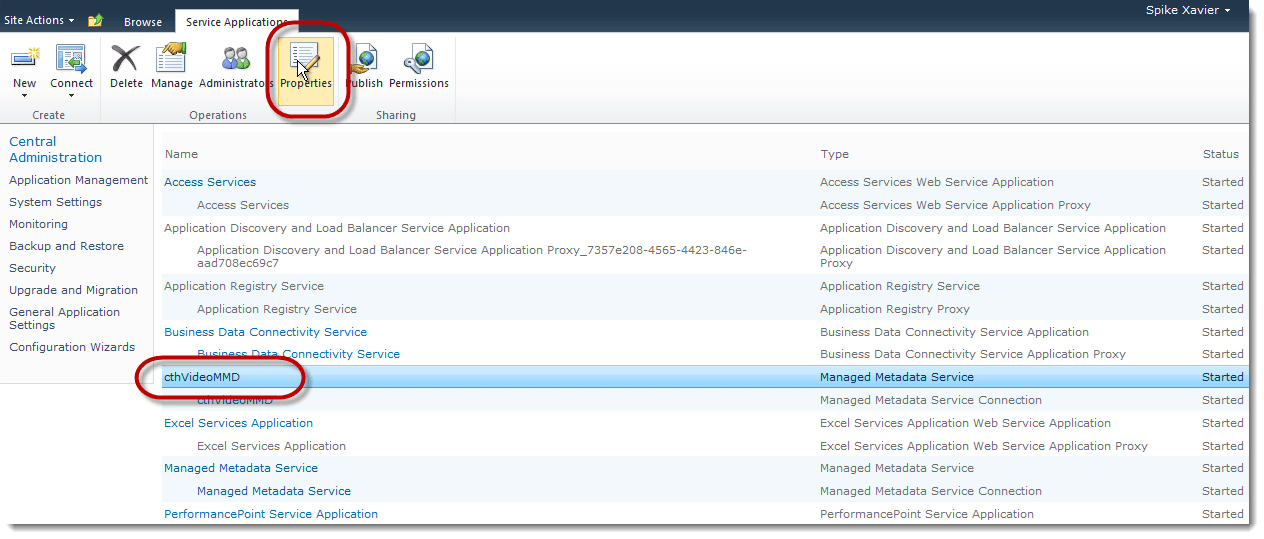

To validate the settings, highlight the row for the “cthVideoMMD” Managed Metadata Service Application, click Properties,

Managed Metadata Service Application How to set up a Content Type Hub in SharePoint 2010

And validate that it shows the Content Type Hub, and it’s grayed out.

validate Content Type Hub How to set up a Content Type Hub in SharePoint 2010

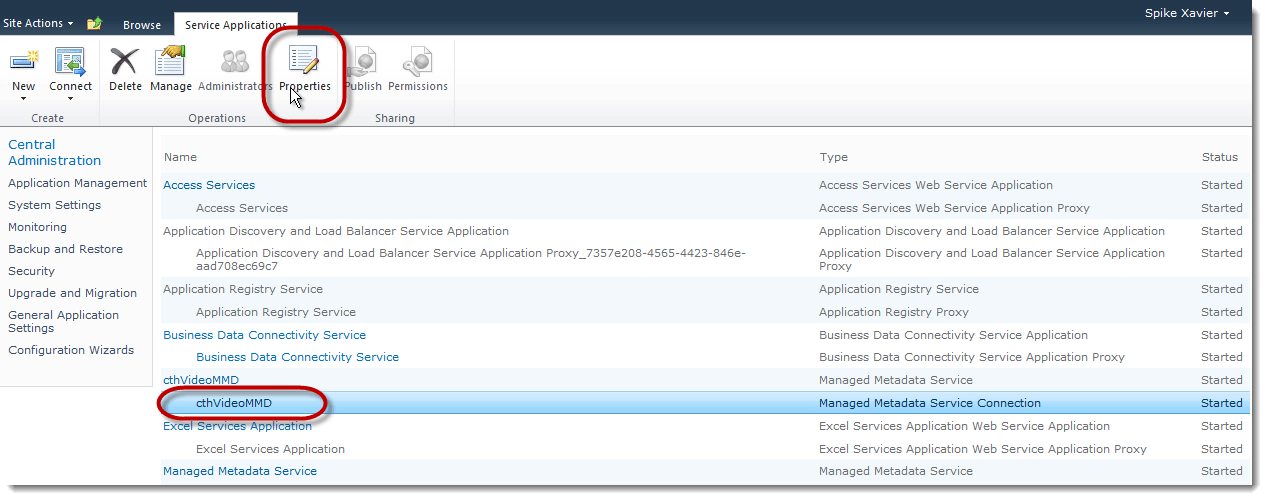

Next, we’ll validate the service connection by doing the same as with Content Type Hub.

validate Content Type How to set up a Content Type Hub in SharePoint 2010

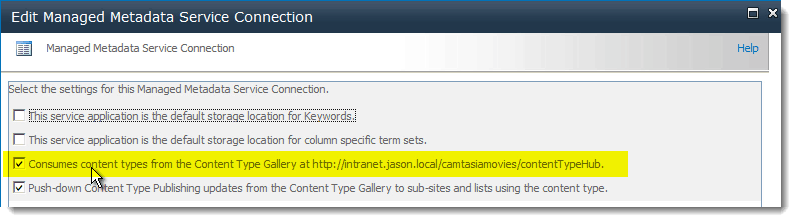

Make sure the check box is active next to “Consumes Content Types from the Content Type Gallery and Content Type Hub”.

Consumes How to set up a Content Type Hub in SharePoint 2010

This is now validated. It’s configured correctly, and we can now test to make sure everything works.

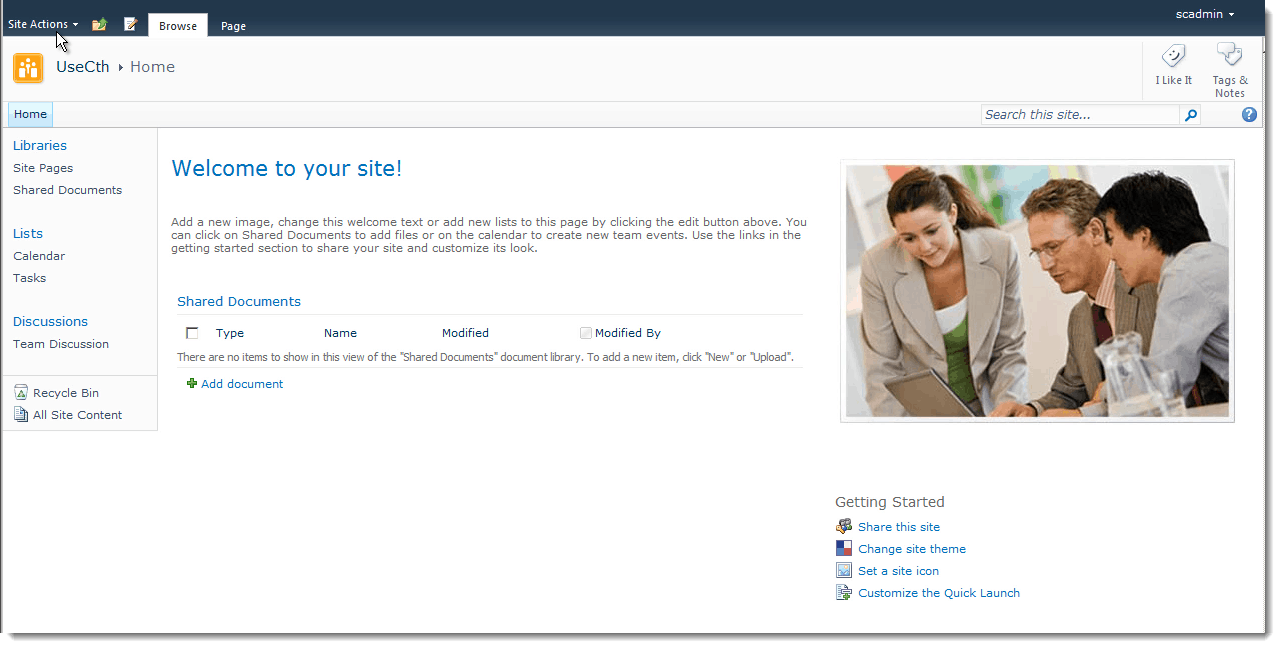

In order to test this, we’ll create created a brand new Site Collection.

new site collection How to set up a Content Type Hub in SharePoint 2010

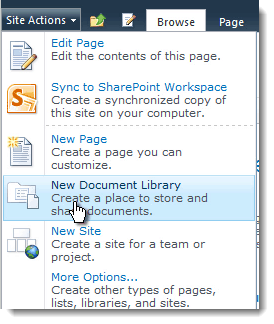

Next, add a document library to the new Site Collection.

new document library How to set up a Content Type Hub in SharePoint 2010

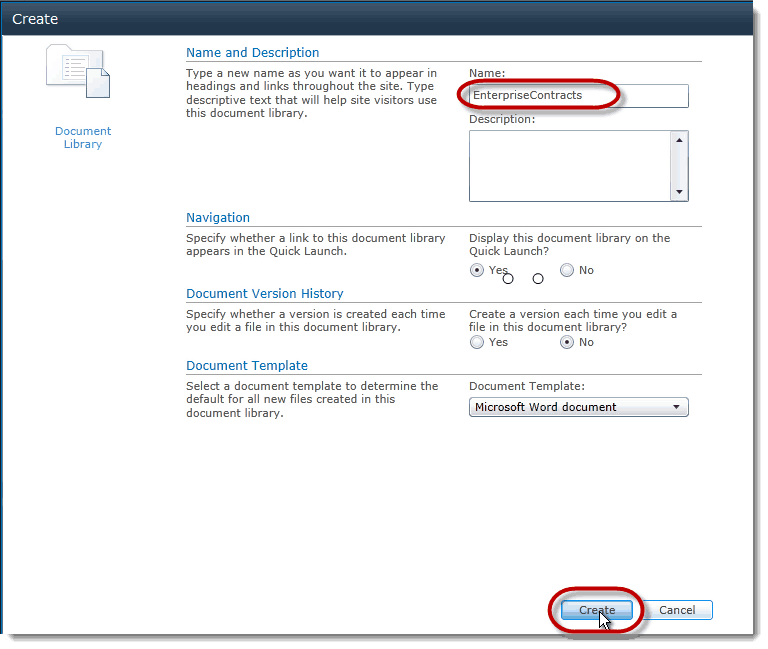

We’ll name this “Enterprise Contracts”, and click Create.

create new document library How to set up a Content Type Hub in SharePoint 2010

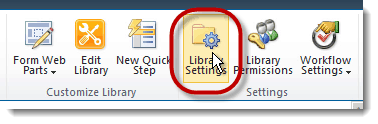

This Document Library is being set up to manage its own Content Types by clicking Library Settings,

library settings How to set up a Content Type Hub in SharePoint 2010

Advanced Settings

advanced settings library How to set up a Content Type Hub in SharePoint 2010

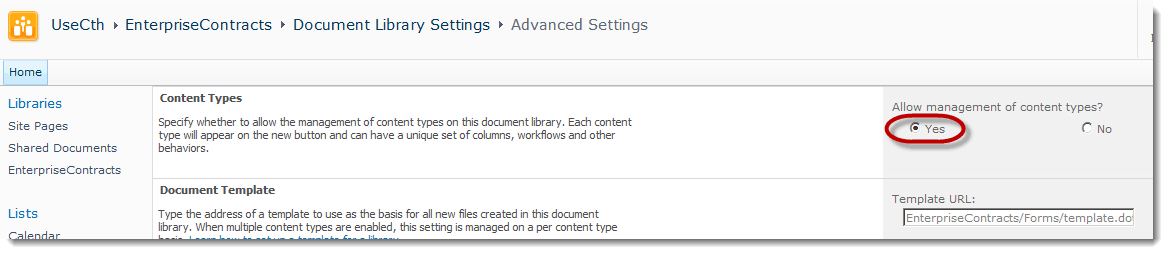

And Allow Management of Content Types.

Allow Management of Content Types How to set up a Content Type Hub in SharePoint 2010

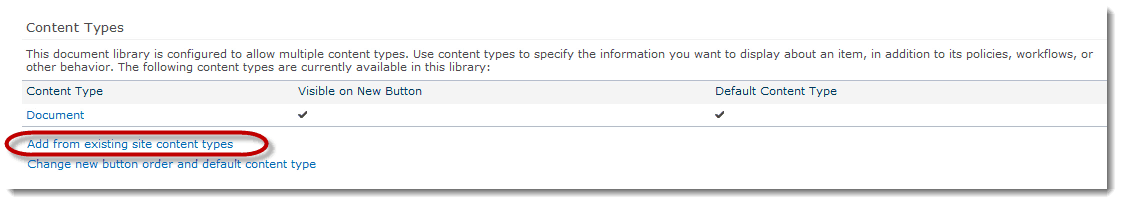

Once set up to manage its own content types, SharePoint will now display a section on the settings page to allow us to “Add from existing site content types”.

Add from existing site content types How to set up a Content Type Hub in SharePoint 2010

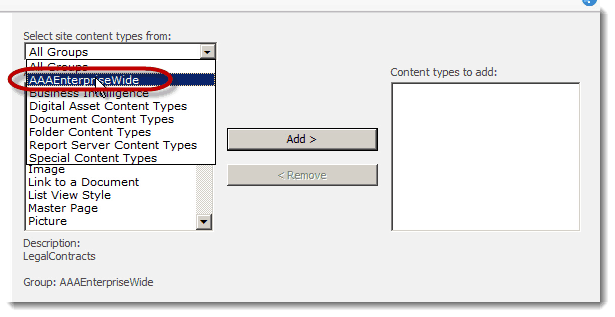

Normally this would show all of the Content Types in this Site Collection. But now if we browse the groups, it will show our AAAEnterpriseWide Content Types Group,

groups How to set up a Content Type Hub in SharePoint 2010

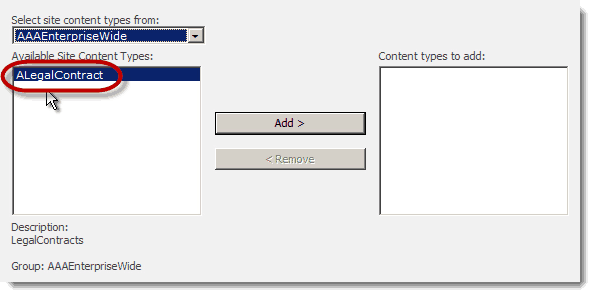

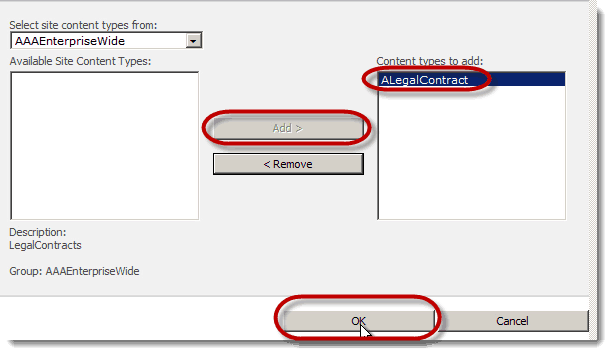

And now ALegal Contract is available under “Available Site Content Types”.

available site content types How to set up a Content Type Hub in SharePoint 2010

These are being surfaced from the Content Type Hub’s Content Type Gallery on a totally different Site Collection. Now we can select “ALegal Contract” and hit the Add button to move it over.

added available site content types How to set up a Content Type Hub in SharePoint 2010

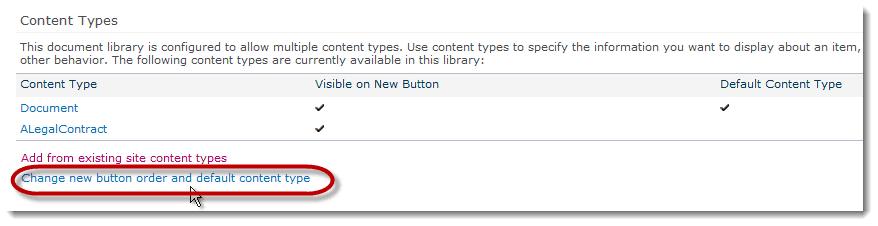

Next, click the “Change new button order and default content type” option.

default content type How to set up a Content Type Hub in SharePoint 2010

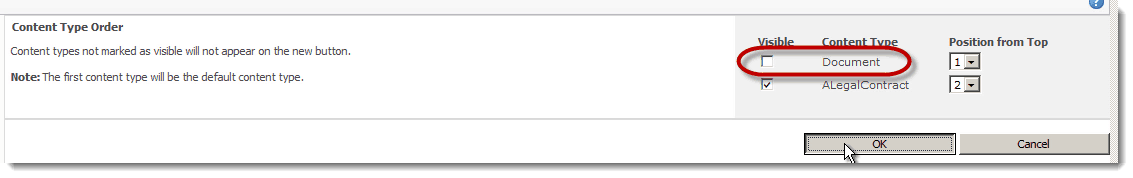

And uncheck Document.

uncheck document How to set up a Content Type Hub in SharePoint 2010

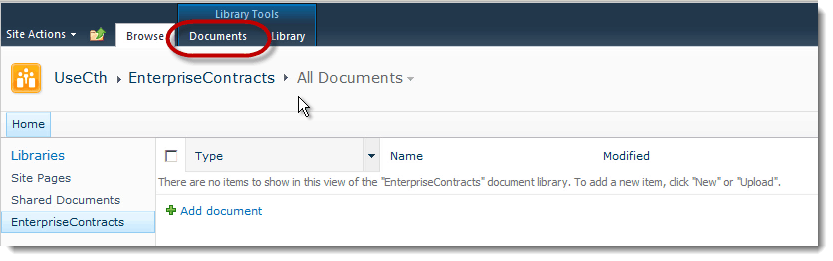

Now, when users come to the Enterprise Contracts library on this Site Collection, they click on the Documents tab.

documents tab How to set up a Content Type Hub in SharePoint 2010

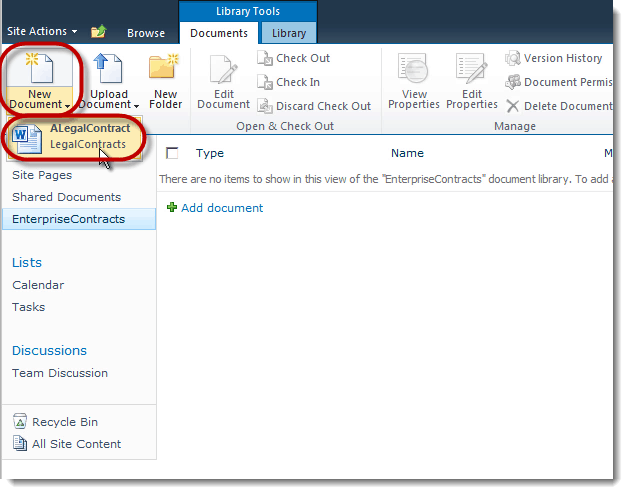

Click New, they will be presented with a Legal Contract.

new legal contract How to set up a Content Type Hub in SharePoint 2010

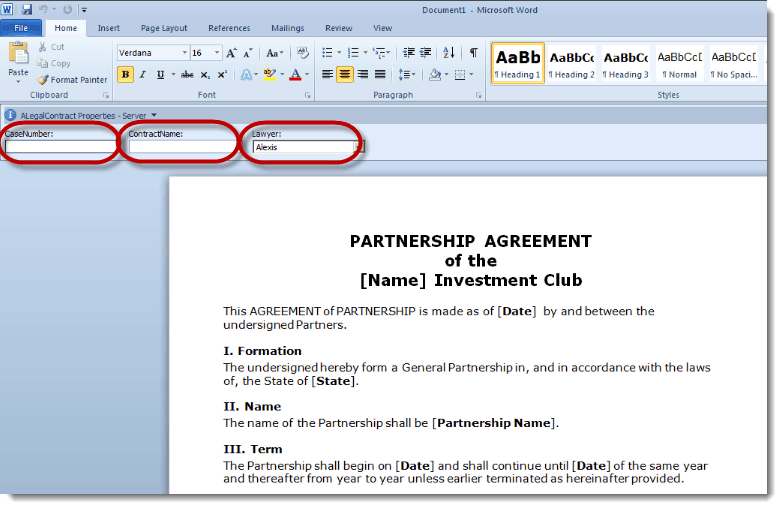

This will bring all of the properties that are associated with the Content Type that was created in the Content Type Hub.

For example, the Case Number, Contract Name and Lawyer choice Site Columns are now associated with the document.

site columns document How to set up a Content Type Hub in SharePoint 2010

The Document Information Panel and the template that was associated with the Content Type is also brought along.

By creating our enterprise wide Content Types in a Content Type Hub,

Web Application Site Collection How to set up a Content Type Hub in SharePoint 2010

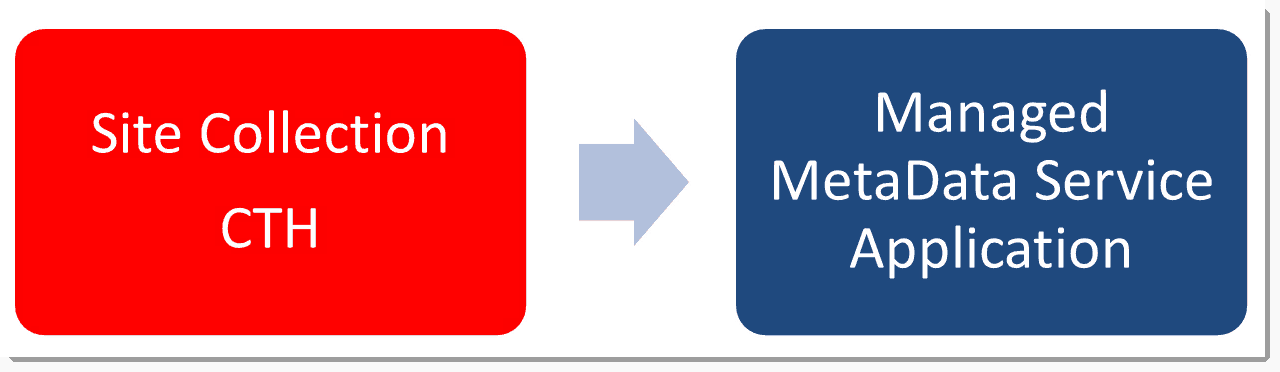

And then associating that Content Type Hub to a Managed Metadata Service Application,

Metadata Service Application How to set up a Content Type Hub in SharePoint 2010
We’re able to create our Content Types in one Site Collection and have them be available throughout the entire enterprise.

enterprise Metadata Service Application How to set up a Content Type Hub in SharePoint 2010

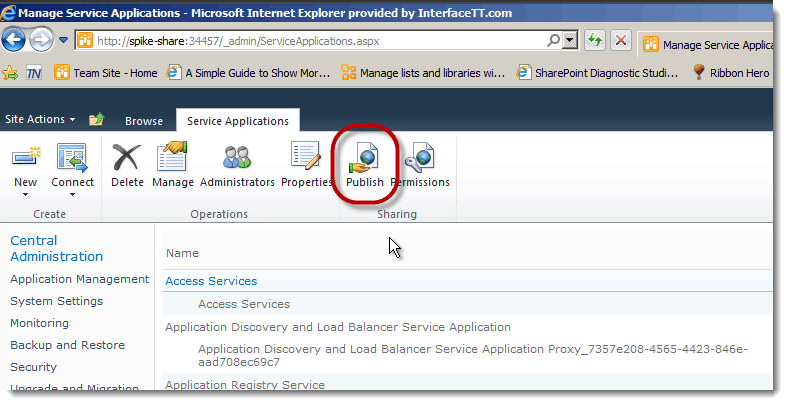

publish enterprise Metadata Service Application How to set up a Content Type Hub in SharePoint 2010

publish farm enterprise Metadata Service Application How to set up a Content Type Hub in SharePoint 2010

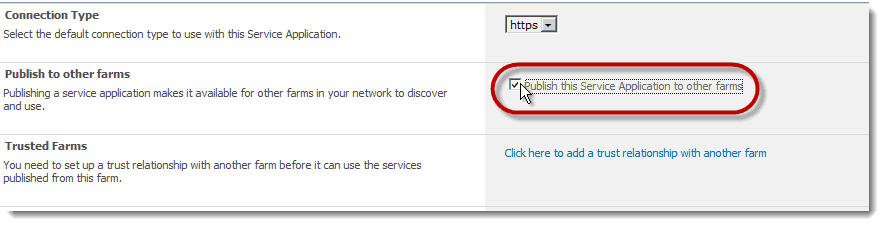

The Managed Metadata Service Application is one of these Service Applications that can be published cross farm so that you can actually control the taxonomy from your Content Type Hub, and have it completely available throughout the enterprise.

Let’s review the steps that we went over to create this and connect it.

1. Created a Site Collection
2. Activated the features necessary to create a Content Type Hub,
3. Created a new Managed Metadata Service Application
4. Connect the Service Application to the Content Type Hub
5. Verified the settings on the Application and the connection
6. Created a Content Type in the Hub
7. Tested the Content Type in a different Site Collection than the Content Type Hub and tested the availability of those Content Types even though they were created in the Hub, which is a completely different Site Collection.

Enjoy!
Spike Xavier
SharePoint Instructor – Interface Technical Training
Phoenix, AZ

Subscribe to this author's posts feed via RSS

You May Also Like

  • Using Navigation Controls in a Collaboration Site in SharePoint
    Using Navigation Controls in a Collaboration Site in…
  • Using Navigation Controls in a Publishing Site in SharePoint
    Using Navigation Controls in a Publishing Site in SharePoint
  • How to Configure Navigation in SharePoint Publishing Sites
    How to Configure Navigation in SharePoint Publishing Sites
  • Part 5 - Importing a CSV file into SharePoint 2013: Create Home Page Dashboards
    Part 5 - Importing a CSV file into SharePoint 2013: Create…
Category SharePoint

Tags

Content Type Hub, Document Library, managed metadata service application, metadata, Proxy Group, Service Application, SharePoint, SharePoint 2010, Site Collection, Web Application

Videos You May Like

Creating Users and Managing Passwords in Microsoft Office 365

Creating Users and Managing Passwords in Microsoft Office 365

0 795 4

In this Office 365 training video, instructor Spike Xavier demonstrates how to create users and manage passwords in Office 365.   For instructor-led Office 365 training classes, see our course schedulle: Spike Xavier SharePoint Instructor – Interface Technical Training Phoenix, AZ 20347: Enabling and Managing Office 365

Using Navigation Controls in a Collaboration Site in SharePoint

Using Navigation Controls in a Collaboration Site in SharePoint

0 361 1

In this SharePoint training video, I want to talk about the Navigation Controls in SharePoint. They tend to fall into two kind of different categories; one with the navigation controls in a typical Collaboration Site such as a Team Site or a Project Site. These are Sites that are based on the Team Site Template … Continue reading Using Navigation Controls in a Collaboration Site in SharePoint

How to Use SharePoint Navigation Controls in a Publishing Site

How to Use SharePoint Navigation Controls in a Publishing Site

0 235 2

For more SharePoint training videos in this series, see: Part 1 – Using Navigation Controls in a Collaboration Site in SharePoint Part 2 – » Using Navigation Controls in a Publishing Site in SharePoint « Part 3 – Configuring SharePoint Navigation in a Publishing Site – Activating the Publishing Feature Part 4 – How to Configure Navigation in SharePoint … Continue reading How to Use SharePoint Navigation Controls in a Publishing Site

Write a Comment

Share your thoughts...

Please fill out the comment form below to post a reply.

Microsoft Subscription

Blogs by Technology

  • Amazon AWS (2)
  • Azure Cloud Computing (2)
  • Business Analysis (8)
  • Cisco (125)
  • CompTIA (71)
  • Developer Visual Studio / ASP.NET (62)
  • Exchange Server (47)
  • ITIL / COBIT (33)
  • Lync Server (3)
  • Office 365 (5)
  • PMP Project Management (63)
  • PowerShell (81)
  • Security (47)
  • SharePoint (93)
  • SQL Server (78)
  • System Center (13)
  • Web Development (60)
  • Windows 10 (65)
  • Windows 7 (124)
  • Windows 8 (85)
  • Windows Server (74)
  • Windows Server 2012 (90)
  • Windows Server 2016 (14)
  • Wireless (9)
  • Wireshark (5)

Blogs by Instructor

  • Dan Wahlin (44)
  • Don Jones (15)
  • Dr. Avril Salter (6)
  • Greg Richard (1)
  • Interface (49)
  • Jason Helmick (38)
  • Jeff Jones (18)
  • Jeremy Cioara (8)
  • Mark Jacob (128)
  • Mark Thomas (28)
  • Mike Danseglio (93)
  • Mike Pfeiffer (35)
  • Peter Avila (32)
  • Rick Trader (127)
  • Spike Xavier (86)
  • Steve Fullmer (163)
  • Suzanne Van Hove (1)

Blogs You May Like

  • Creating Lists and Libraries in SharePoint
  • Managing Lists and Libraries in SharePoint – An Overview
  • How to Configure Navigation in SharePoint Publishing Sites
  • Configuring SharePoint Navigation in a Publishing Site – Activating the Publishing Feature
  • Using Navigation Controls in a Publishing Site in SharePoint
  • Using Navigation Controls in a Collaboration Site in SharePoint

Video Courses

  • ITIL 4 Foundation Certification Video Training Course
  • Project Management Professional (PMP®) Certification Video Training PMBOK® 6th Edition
  • PMI-PBA Business Analysis for IT Analysts and Project Managers (PMI-PBA)® Certification
  • SharePoint Designer 2013 for American Express
  • CompTIA Network+ (Coming Soon!)
  • CompTIA Security+ (Coming Soon!)
  • CompTIA A+ Certification Core 1 1001 (Coming Soon)
  • CompTIA A+ Certification Core 2 1002 (Coming Soon)

Live Training Courses

  • NET+007: CompTIA Network+ Certification Training + N10- 007 Exam
  • PowerShell - 10961: Automating Administration with Windows PowerShell
  • ITIL4® Foundation Certification Course with Exam
  • AZ-100: Azure Infrastructure and Deployment Training
  • PMI-PBA: Business Analysis for IT Analysts and Project Managers (PMI-PBA Certification)
  • Cisco CCNA - ICND1v3 Interconnecting Cisco Networking Devices CCNA Part 1
  • COBIT205: COBIT® 5 Foundation and Implementation IT Governance Training
  • DEV415: Microservices with ASP.NET Core and Docker
  • IT Security - SEC+501: CompTIA Security+ with Certification Exam SY0-501
  • SQL Server - SQL101: Introduction to Transact SQL
Facebook
Twitter
Linked In
Comment
EMAIL

About Us

  • Interface Gold™ Benefits
  • TechPaks
  • Training Room Rental
  • Group Training & Private Classes

Contact Us

3115 N 3rd Ave
G130
Phoenix, AZ 85013

602-266-8500

Stay in touch on our social channels!
Twitter
Facebook
LinkedIn
State of Arizona Contract # ADSPO18-210228

Copyright © 2022 Interface Technical Training. All Rights Reserved.

Interface Live Training Terms and Conditions Terms of Use Microsoft Subscription Terms and Conditions Privacy Policy WIOA Policy
