How to add the Dial-in Tab in Windows 8 and Windows 8.1 Remote Sever Administration Tools (RSAT)

Home > Blogs > Windows 8 > How to add the Dial-in Tab in Windows 8 and Windows 8.1 Remote Sever Administration Tools (RSAT)

How to add the Dial-in Tab in Windows 8 and Windows 8.1 Remote Sever Administration Tools (RSAT)

Like This Blog 6 Rick Trader
Added by October 13, 2014

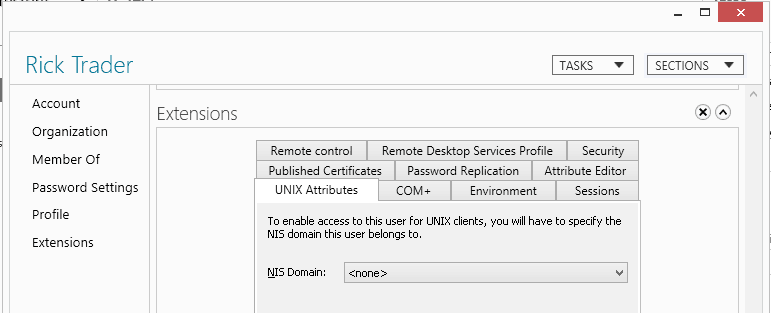

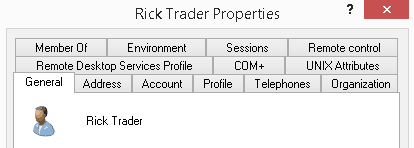

After downloading and installing the Remote Sever Administration Tools (RSAT) in Windows 8 and 8.1 the Dial-in tab is missing in both the Active Directory Administrative Center (ADAC) (See figure 1 ).and Active Directory Users and Computers (ADUC) (See figure 2 ).

001-How-to-add-the-Dial-in-Tab-in-Windows-8-and-8-1-RSAT

Figure 1

002-How-to-add-the-Dial-in-Tab-in-Windows-8-and-8-1-RSAT

Figure 2

To add the Dial-in properties tab, copy the following files from a Windows 2012 R2 x64 server to the Windows 8 or Windows 8.1 Desktop.

C:\Windows\System32\mprsnap.dll

003-Active-Directory-Users-and-Computers-ADUC

C:\Windows\System32\rasuser.dll

004-Active-Directory-Users-and-Computers-ADUC

C:\Windows\System\rtrfiltr.dll

005-Active-Directory-Users-and-Computers-ADUC

C:\Windows\System32\en-US\mprsnap.dll.mui

006-Active-Directory-Users-and-Computers-ADUC

C:\Windows\System32\en-US\rasuser.dll.mui

007-Active-Directory-Users-and-Computers-ADUC

C:\Windows\System32\en-US\rtrfiltr.dll.mui

008-Active-Directory-Users-and-Computers-ADUC

Once you have copied the files to your desktop, then copy the files to the appropriate C:\Windows\System32 or C:\Windows\System32\en-US folder.

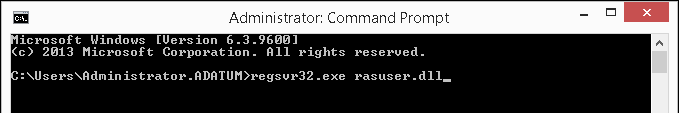

Open the Command Prompt with Administrative rights type the following command (See figure 3).

regsvr32.exe rasuser.dll

005-How-to-add-the-Dial-in-Tab-in-Windows-8-and-8-1-RSAT

Figure 3

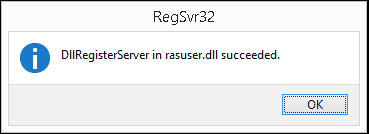

Ensure a dialog box opens the rasuser.dll was successfully registered (See figure 4).

006-How-to-add-the-Dial-in-Tab-in-Windows-8-and-8-1-RSAT

Figure 4

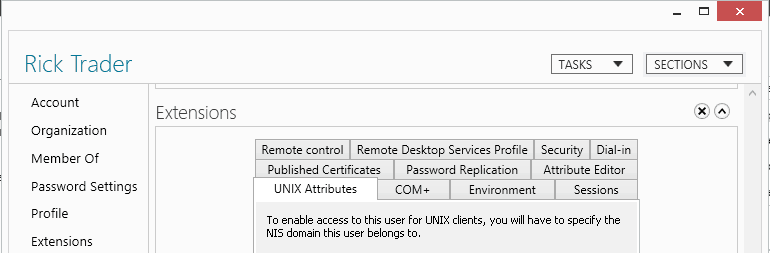

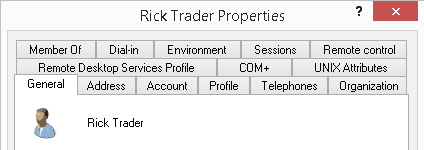

If you have either ADAC or ADUC open you will need to close and reopen the tools.  The Dial in Tab is now available in the user property in both the Active Directory Administrative Center (See figure 5) and the Active Directory Users and Computers (See figure 6).

007-How-to-add-the-Dial-in-Tab-in-Windows-8-and-8-1-RSAT

Figure 5

008-How-to-add-the-Dial-in-Tab-in-Windows-8-and-8-1-RSAT

Figure 6

Until next time – ride safe.
Rick Trader

Windows Server Instructor – Interface Technical Training

Phoenix, AZ

Videos You May Like

Subnetting a TCP/IP Network using the Magic Box Method

0 1610 5

See our class schedule for complete Course Schedule Training. Classes are held in Phoenix, AZ and can be attended online from anywhere in the world with RemoteLive™. Instructor: Rick Trader  Video Transcription: One of the things that we might have to do in our corporate network is to take a class of IP addresses and then subnet that into … Continue reading Subnetting a TCP/IP Network using the Magic Box Method

How to clone a Windows Server 2012 or 2012 R2 Domain Controller

3 1480 3

One of the coolest new features in Window Server 2012 and Windows Server 2012 R2 is the ability to clone a Domain Controller. In the past, if we had virtualized Domain Controllers and we actually took a snapshot of it and then rolled back to that snapshot, it would break the logon service on that … Continue reading How to clone a Windows Server 2012 or 2012 R2 Domain Controller

Detailed Forensic Investigation of Malware Infections – April 21, 2015

4 606 5

How does an investigator hunt down and identify unknown malware? In this recording of our IT Security training webinar on April 21, 2015, Security expert Mike Danseglio (CISSP / CEH) performed several malware investigations on infected computers and identify symptoms, find root cause, and follow the leads to determine what’s happening. He demonstrated his preferred … Continue reading Detailed Forensic Investigation of Malware Infections – April 21, 2015

Write a Comment

See what people are saying...

  1. Avatar undefeatable

    THANK YOU!

  2. Avatar Mark W Foster

    When trying to register the rauser.dll file I get an error:

    The module “rasuser.dll” failed to load.

    Make sure the binary is stored at the specified path or debug it to check
    for problems with the binary or dependant .DLL files.

    The specified procedure could not be found.

    this pops up right after I run as listed above for this file. It lives inside of c:\windows\system32 on a windows 10 enterprise 64 bit system. I copied the file from a windows 2012 64 bit server.

    Please assist in any way you can.

  3. Avatar jopejr

    won’t let me copy 2 of 3 files in each directory

  4. Avatar Interface Technical Training

    Thanks for your comment. We’ve fixed the post to include the correct folders.

  5. Avatar slipihead

    sorry .. I forgot to mention that the previous comment works for on a 64-bit environment ..

  6. Avatar slipihead

    you forgot to mention that they also need to copy the following files and transfer them to their respective folders:

    Location: C:\WIndows\System32\
    Files: mprsnap.dll, rtrfiltr.dll

    Location: C:\WIndows\System32\en-us
    Files: mprsnap.dll.mui, rtrfiltr.dll.mui

    If the said files are not copied, you’d get an error message “module rasuser.dll failed to load” when registering rasuder.dll
